L&T | SKU: CS94106AOOO

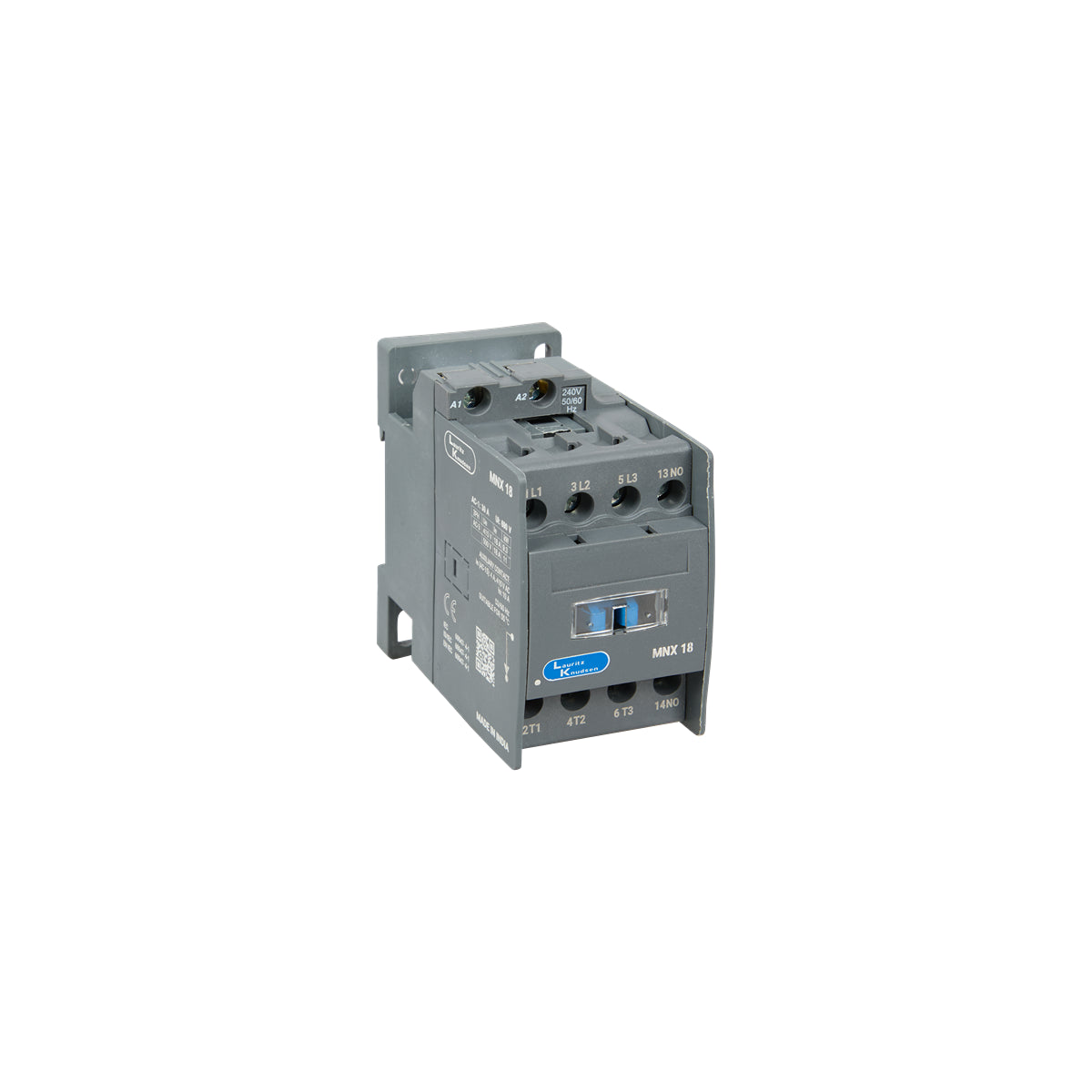

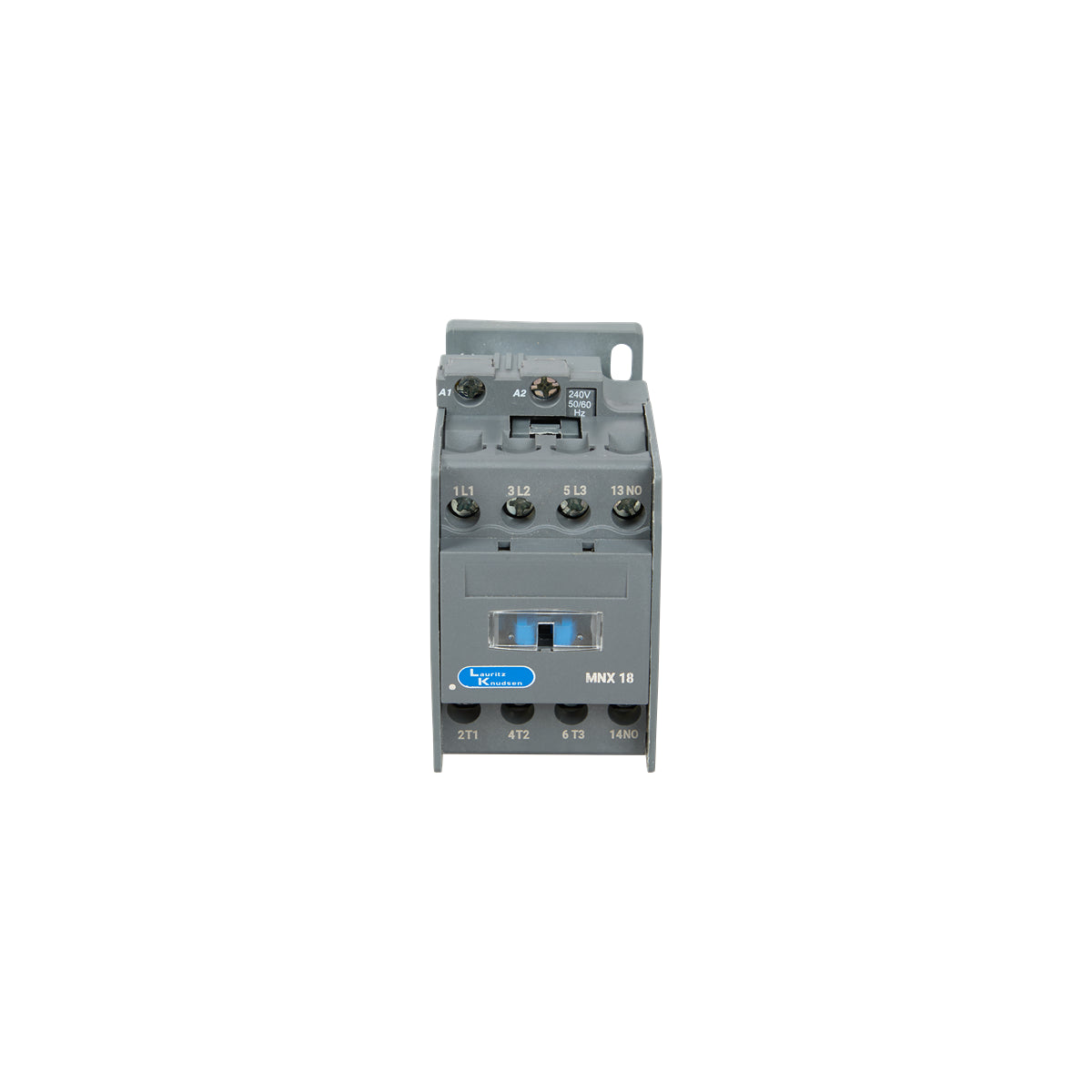

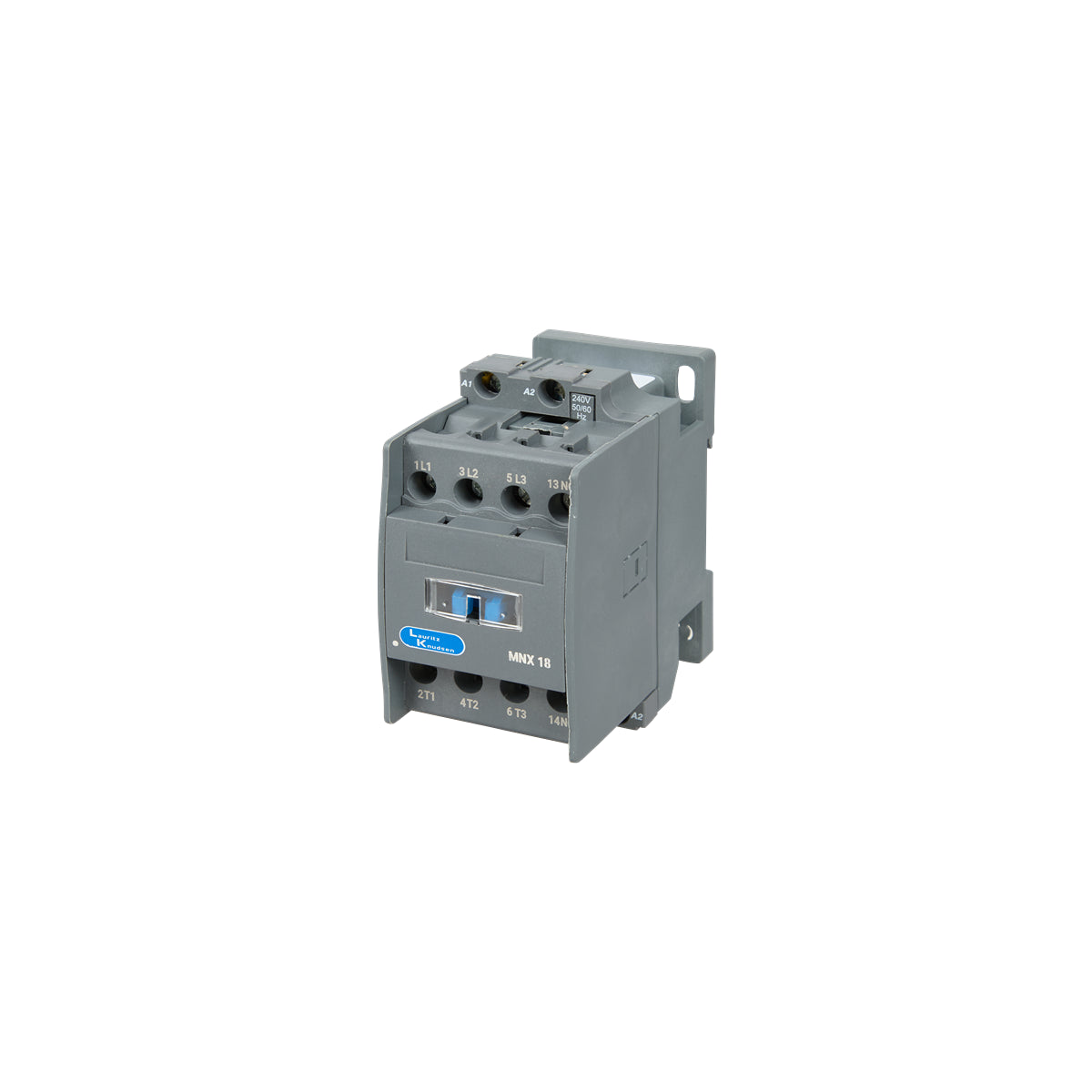

Lauritz Knudsen MNX Contactor 9A 3 Pole AC In Built 1NO AC-3 AC Coil 50/60 Hz

Rs. 899.00 Rs. 1,050.00

Tax included Shipping calculated at checkout.

Volt

110V 240V 415V

Product variants

Lauritz Knudsen MNX Contactor 9A 3 Pole AC In Built 1NO AC-3 AC Coil 50/60 Hz - 110V is backordered and will ship as soon as it is back in stock.

Popular right now
Lots of people have looked at this recently

Selling fast!
Grab yours while you can

15 days Return & Refund

The product is eligible for free return up to 15 day and paid return up to 30 days.

Delivery within 4-7 business day depending upon your location. Free Delivery on order above ₹499

MNX power contactors are mainly used in motor feeder and control system applications.
The range is available from 9A to 650A (AC-3) and provides a reliable performance across diverse conditions like high ambient temperature, humidity, etc.
Standardized accessories and spares are available for the entire range

Ambient temperature	-20 to 55 degrees C
Mechanical Life (No. of operating cycles)	7200 Cy/hr
Rated impulse withstand voltage (Uimp)	8kV
Rated Insulation Voltage Ui (V)	690V
Conformance to Standards	IS/IEC 6094741, IEC 6094741
Coil Voltage	240 V AC
Rated operational current at 415V	9A
Discount Percentage	Between 0-10 %
No. of Poles	3P
Height(mm)	83
Width(mm)	45
Depth(mm)	88
Rated kW	4kW
Rated making capacity	450A
Coil Operating band %Uc (Pick up)	65 - 120 %
Rated breaking capacity	200A
Mechanical Life	15 Million
Coil Operating band %Uc (Drop off)	35 - 50 %
Pick up VA consumption	68VA
Hold on VA consumption	11VA
