L&T Exora Four Pole C Curve 32A MCB BB40320C

• The MCB is a vital protection device that is essential in every electrical installation to safeguard both your life and valuable property against short-circuit and overload.

 Technical Specifications

• Discount Percentage
  Between 0-10 %
• Operating Temperature Range
  -25°C to +70° C
• Electrical life (Operating Cylces)
  20000
• Tightening Torque
  4Nm
• Termination capacity
  35 Sq. mm (Rigid) 25 Sq. mm (Flexible)
• Mechanical Life (Operating Cycles)
  100000
• No. of Poles
  FP
• Conformance to standards
  IS/IEC 60898-1
  IEC 60947-2
• Rated Insulation Voltage Ui (V)
  500V
• Rated Frequency
  50Hz/60Hz
• Rated Short-circuit Breaking Capacity
  10kA as per IS/IEC 60898-1
  15kA as per IEC 60947-2
• Rated Impulse Voltage
  4kV
• Current Rating
  32A
• Rated Operational voltage (Ue)
  415V
• Conformance to Standards
  IS/IEC 60898-1 IEC 60947-2
• Tripping Characteristic
  C Curve
• Length(mm)
  74.5
• Height(mm)
  87.3
• Breadth(mm)
  70

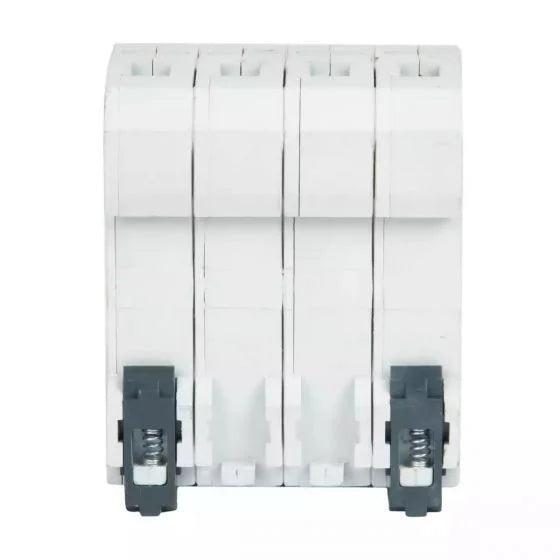

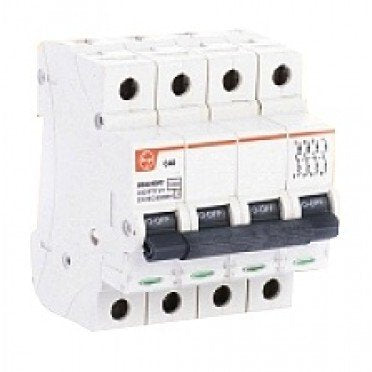

The EXORA MCB 32A FP (Four Pole) 415V AC 10kA C Curve is an essential component for protecting electrical circuits from overcurrent and short circuits. Designed to automatically disconnect power when unsafe conditions are detected, this MCB safeguards electrical systems by preventing damage and potential hazards.

Features and Benefits

• Compact Design
• High Precision Operation
• Durability
• Ease of Installation
• Compliance with Safety Standards

Technical Specifications

• Current Rating: 32 Amps
• Voltage Rating: 415V AC
• Tripping Characteristics: C Curve
• Number of Poles: Four
• Breaking Capacity: 10kA
• Temperature Range: Operates effectively within standard temperature limits.

Applications

The EXORA MCB 32A FP is ideal for a range of applications, including residential electrical systems, industrial machinery, and commercial buildings. It is particularly effective in circuits that require robust protection against overloads and short circuits, ensuring reliable operation and enhanced safety.

Installation and Usage

Installation involves connecting the MCB to the electrical panel following standard procedures. Ensure that all safety precautions are observed during installation, including disconnecting power before fitting the MCB.

Price and Availability

Contact our sales team for the most competitive MCB 32 Amp 4 pole price if you wish to make a bulk purchase. We also offer discounts at 4 pole MCB 32 Amp price.
